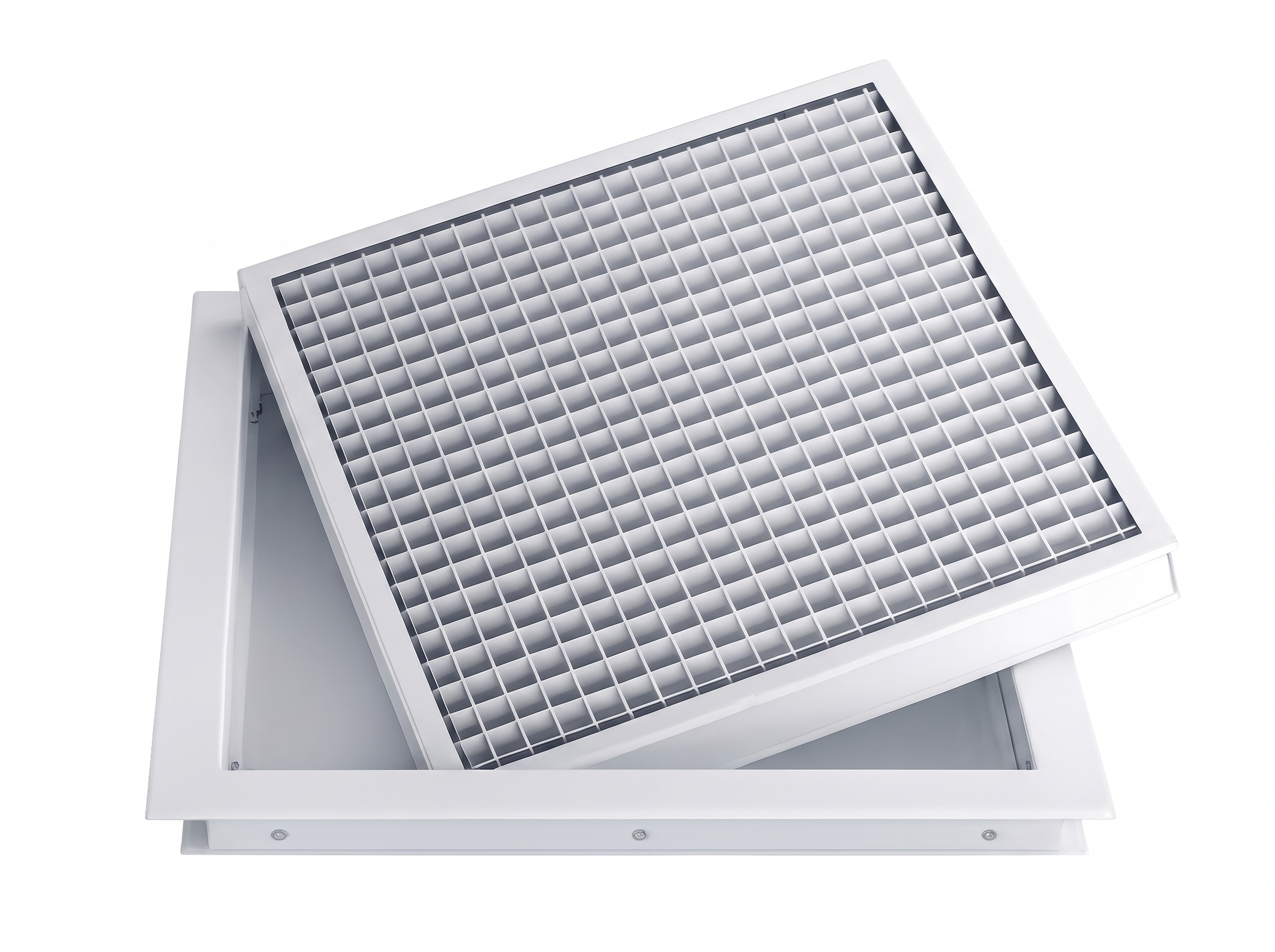

Removable-Core Eggcrate Grille (REM-C)

REM-C Removable-Core Eggcrate Grille

An extruded aluminium grille with a removable square-pattern eggcrate core and a 26 mm frame flange. Suitable for ceiling return-air and exhaust-air applications.

Stocked square sizes

150, 200, 250, 300, 350, 400, 450 and 550 mm nominal neck.

Options

• RAL 9010 stocked finish
• Other sizes and colours available to order
• 43 mm overall height

Download the REM-C technical datasheet (PDF).

Choose the right Removable-Core Eggcrate Grille (REM-C)

Select by nominal neck size, airflow duty, mounting position and the required finish or damper option. Available options are grouped on this page so you can compare compatible sizes without searching through duplicate product pages.

Browse all grilles, diffusers and air valves or ask the DuctFix team for product-selection help.

Removable-Core Eggcrate Grille (REM-C) frequently asked questions

How do I choose the correct size and configuration?

Use the nominal neck or opening size and check the intended supply, return or extract duty. Contact DuctFix if you need help with airflow, throw, finish or damper selection.

Are other sizes or finishes available?

Availability depends on the product range. Where a required option is not listed, send DuctFix the model, opening size and application details for confirmation.

Lead time and delivery

Availability varies by size and specification. Stocked items can usually be dispatched promptly, while made-to-order items may require additional lead time. Delivery charges and available services are calculated at checkout. Contact DuctFix before ordering if your project has a fixed delivery date.
